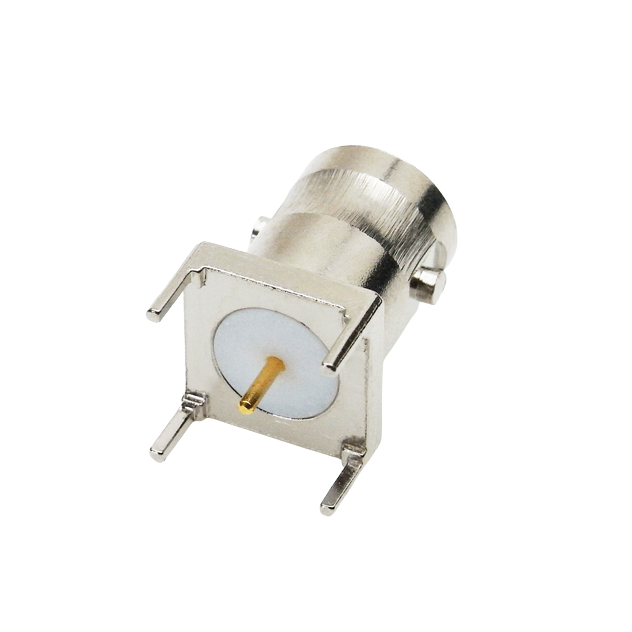

The C-SX-068 precision 75Ω BNC Connector is a top entry five pin PCB mounted connector, with a square base. Cambridge Connectors precision BNC range are compatible with all other standard BNC connectors, but peak performance is achieved when mated with other connectors in our range. Other materials such as gold plating are available to customer requirement.
