| Impedance | 75 ohm |
| Frequency Range | 0 – 12GHz |
| Return Loss (*) | 15dB (5MHz – 1.5GHz) |
| 10dB (1.5GHz – 3GHz) | |
| 7dB (3GHz – 6GHz) | |
| 4dB (6GHz – 12GHz) |
(*) The electrical performance listed above is complied with SMPTE ST 2082-1. Once it needs to be operated with stricter specification, please highlight your requirement to our attention at RFQ stage.
| Body | Brass/Nickel |
| Insulator | PTFE |
| Inner Contact | Beryllium Copper/Gold |
Any other specific material or plating, please highlight your requirement to our attention at RFQ stage.
| Mating Cycles | 500 |
| Temperature Range | -65℃ to 165℃ |
(1) Our design is to offer 4K and Ultra-HD quality signals for high-resolution uncompressed video transmission.

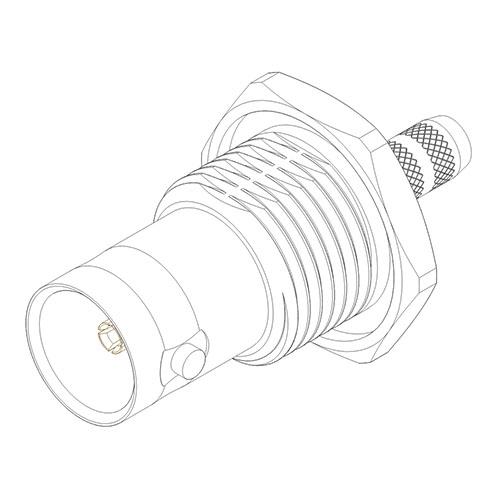

(2) This is single D-flat appearance, or you can choose HB220 for double D-flat instead.
| General P/N | Cable (*) |
| HB271 | Belden 1505A/4505R |
| Belden 1694A/4694R | |
| Belden 1855A/4855R | |
| RG-179 |
(*) These cables are required most frequently for SDI application. Our RD team is able to customize per the cable specification you send to us at RFQ stage.
MX101
Ultra Tiny BNC (75 ohm)(12GHz) Terminator Cable : N/A
