| Impedance | 75 ohm |
| Frequency Range | 0 – 12GHz |
| Return Loss (*) | 15dB (5MHz – 1.5GHz) |
| 10dB (1.5GHz – 3GHz) | |
| 7dB (3GHz – 6GHz) | |
| 4dB (6GHz – 12GHz) |
(*) The electrical performance listed above is complied with SMPTE ST 2082-1. Once it needs to be operated with stricter specification, please highlight your requirement to our attention at RFQ stage.
| Body | Brass/Nickel |
| Insulator | PTFE |
| Inner Contact | Beryllium Copper/Gold |
Any other specific material or plating, please highlight your requirement to our attention at RFQ stage.
| Mating Cycles | N/A |
| Temperature Range | -65℃ to 165℃ |

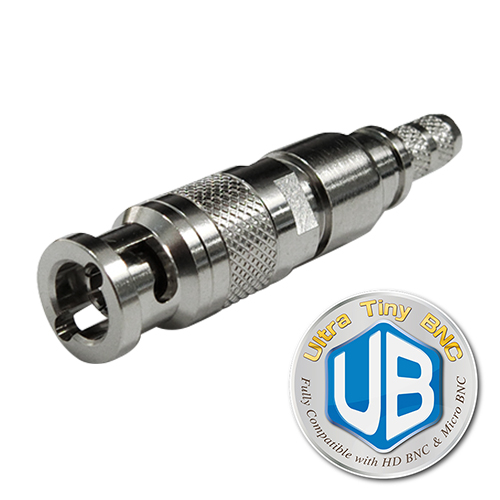

It features 51% smaller than standard BNC and is considered as a superior solution to meet higher space-saving requirement.
| General P/N | Cable (*) |
| UB101 | Belden 1505A/4505R |
| Belden 1694A/4694R | |
| Belden 1855A/4855R (**) | |
| RG-179 |
(*) These cables are required most frequently for SDI application. Our RD team is able to customize per the cable specification you send to us at RFQ stage.
(**) Waterproof design is also available.
