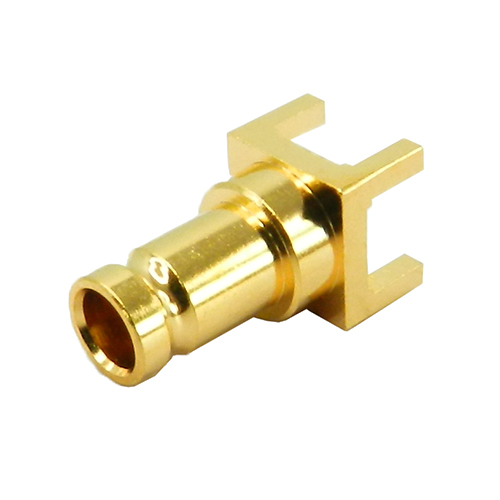

The C-SX-097G precision 75Ω 1.0/2.3 Connector is a top entry PCB mounted connector. This range of connectors meets the SMPTE 424M standard and is ideal for use in industrial process control and data acquisition applications.
