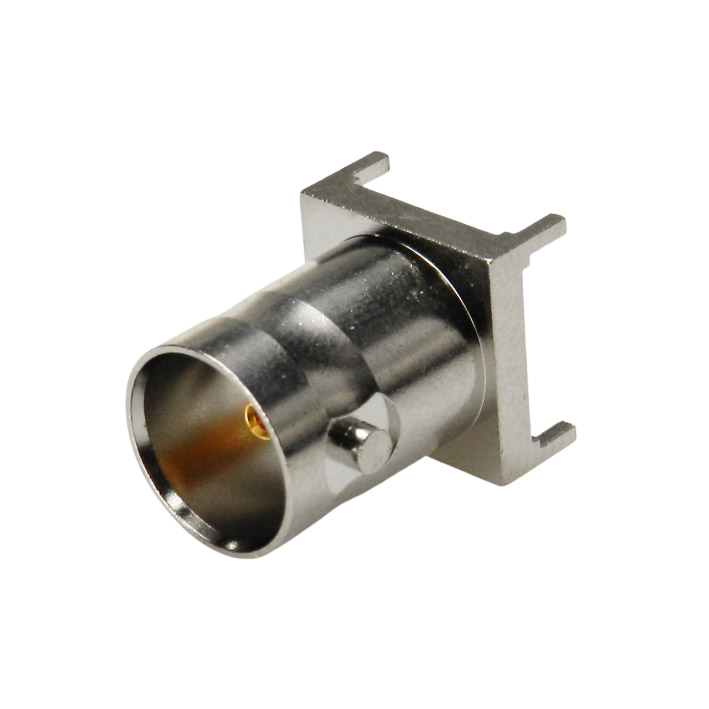

The C-SX-089 is a square based, top entry, mounting BNC connector, which meets the SMPTE 424M standard, allowing bit-rates of 2.970Gbit/s over a single coaxial connection. This connector is ideal for use in industrial process control and data acquisition applications.
